Specifications:

• Type: Film Capacitor

• Series: F2D

• Capacitance: 0.22μF

• Rated Voltage: 50V

• Capacitance Tolerance: ±5%

• Operating Temperature: -40℃ to +105℃

• Electrical Connection: Pins

• Mounting Type: Through Hole

• Lead Shape: Radial

• Terminal Pitch: 7.5mm

• Width: 11.5mm

• Thickness: 7mm

• Height: 12.5mm

Package:

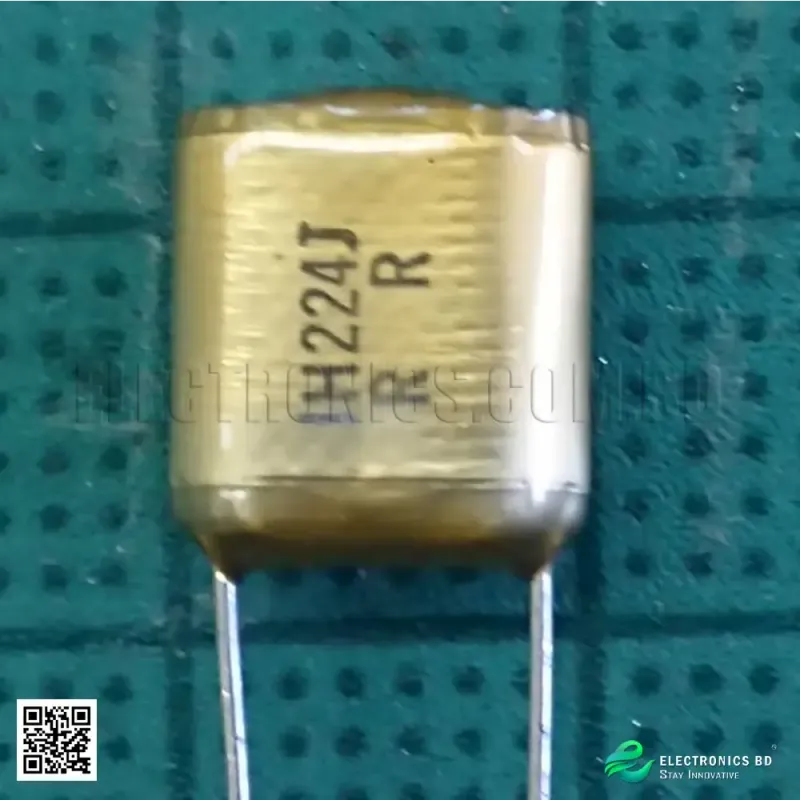

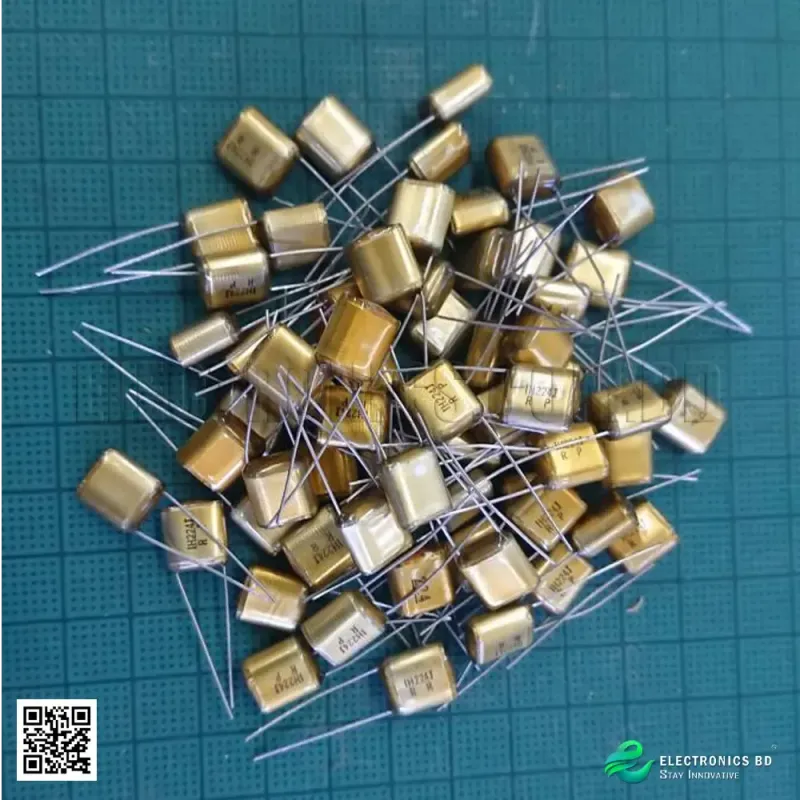

• 1 x 50V 0.22μF 105℃ 50F2D224J Rubycon Radial Lead Polyester Film Capacitor

Description:

The 50V 0.22μF 105℃ 50F2D224J Rubycon Radial Lead Polyester Film Capacitor is a high-quality film capacitor designed for high-frequency coupling, filtering, and noise suppression in electronic circuits. The F2D series ensures low loss, excellent stability, and high insulation resistance. Its radial lead design makes it easy to mount on PCBs, and the 7.5mm terminal pitch ensures compatibility with standard layouts. With an operating temperature range of -40℃ to +105℃, this capacitor performs reliably in harsh environments, making it ideal for both industrial and consumer electronics applications.

FAQ:

1. What is the primary use of this capacitor?
It is commonly used for high-frequency coupling, noise filtering, and energy storage in circuits.

2. Can this capacitor be used in AC circuits?
Yes, but ensure the voltage rating and circuit requirements match its specifications.

3. What is the tolerance of this capacitor?
The capacitance tolerance is ±5%, ensuring precision in electronic applications.

4. What type of mounting does this capacitor use?
It is a through-hole component with radial leads, making it suitable for PCB soldering.

5. What makes polyester film capacitors better than electrolytic capacitors?
Polyester film capacitors have lower leakage current, higher stability, and better temperature resistance, making them more reliable for certain applications.
