Specifications:

• Model No: H3D-PT001
• Printing Accuracy: 0.1mm
• Supported Nozzles: 0.2mm/0.3mm/0.4mm/0.6mm (default 0.4mm)
• Supported Filament: PLA/ABS 1.75mm
• Nozzle Flow: About 24cc/h
• Shaft Speed: 40mm/s
• Power Supply: 12V
• Thermistor: NTC 100K
• Heater: 6mm, 24V 40W
• Working Temperature: 190°~260°C
• Cooling Fan Dimensions: 40x40x11mm
• Nozzle Fan Dimensions: 50x50x11mm
• Outer Size: 95x75x80mm
• Net Weight: 465g

Package:

• 1x 1.75mm 0.4mm Dual Fans Extruder With 0.1mm Accuracy/ Over Temperature Protection For 3D Printer Part

Description:

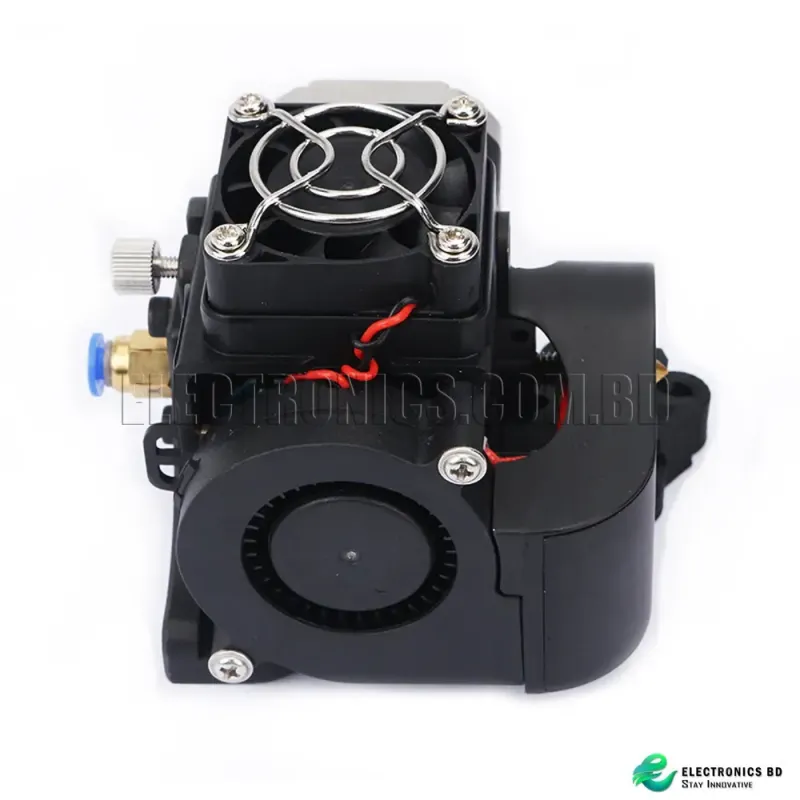

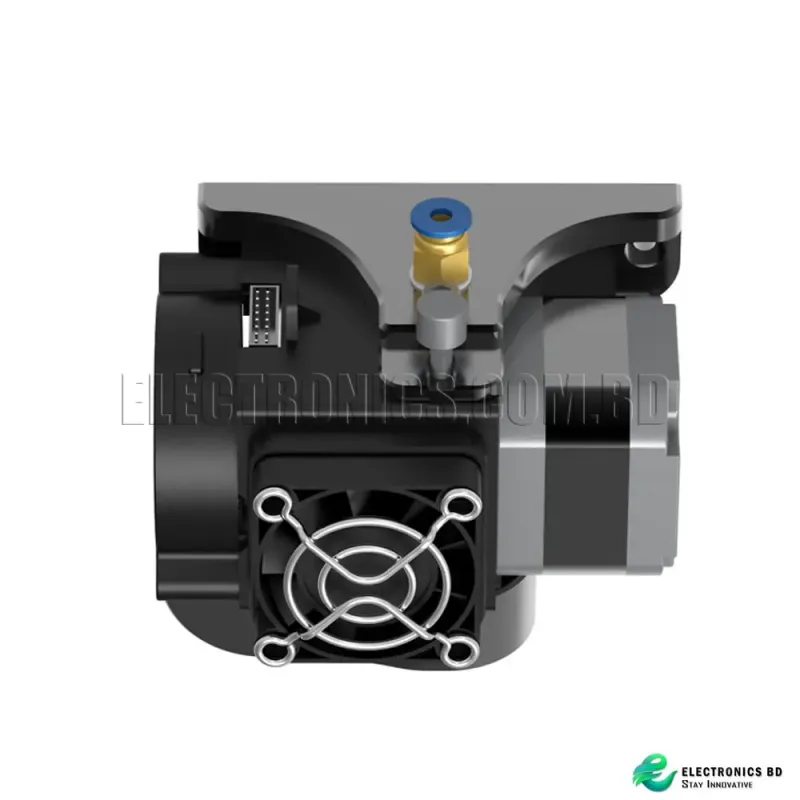

The 12V 1.75mm 0.4mm Dual Fans Extruder is a high-precision 3D printer part designed for reliable and efficient printing. With an accuracy of 0.1mm, it delivers exceptional precision and supports various nozzle sizes for versatile printing needs. The extruder is compatible with 1.75mm PLA and ABS filaments, making it suitable for a wide range of projects. Its built-in over-temperature protection ensures safety, while the dual fans provide effective cooling to enhance print quality. Designed for durability and optimal performance, this extruder is a must-have upgrade for any 3D printer.

FAQ:

1. What is the default nozzle size for this extruder?

   • The default nozzle size is 0.4mm, but it also supports 0.2mm, 0.3mm, and 0.6mm nozzles.

2. What type of filament is compatible with this extruder?

   • The extruder supports 1.75mm PLA and ABS filaments.

3. What is the working temperature range for this extruder?

   • The extruder operates within a temperature range of 190°C to 260°C.

4. Does this extruder have over-temperature protection?

   • Yes, it features over-temperature protection to ensure safe and reliable operation.

5. What is the total weight of the extruder?

   • The extruder weighs 465g.
